TYPE : NNL 690

NNL 690G: Boundary Lubricant for Gear Oil

  1. Strong film affinity maintains lubrication at start-up
  2. By reducing the generation of large wear particles, the efficiency of the oil filter is improved
  3. High base number helps neutralize acids that cause corrosion.
  4. Reduces friction and metal to metal contact in high load areas of the engine
  5. Reduces friction and lowers temperatures in critical bearing and ring zones.
  6. Has a powerful detergent which cleans and suspends sludge and varnish

Description:

NNL 690 is specifically designed for use in engines calling for medium to high ash oils (1.0% or more) and is suitable for use in most other lubricated equipment using non-E.P. oils. NNL 690 provides engines with exceptional anti-wear protection and also contains a superb detergent/dispersant package, viscosity index improvers and excellent anti-corrosion additives. NNL 690 is a balanced additive package that provides complete lubrication when used with good quality mineral based and synthetic oils.

Primary Benefits of NNL 690:

The primary benefit of NNL 690 is friction reduction at the boundary lubrication regime (metal to metal contact).This includes the ring zone, turbocharger and camshaft lobe areas in engines, and the pump, cylinder rods and valves in hydraulics.

Secondary Benefits of NNL 690:

  • Reduces ultrasonic wear noise which relates directly to component wear.
  • Helps prevent sludge and varnish formation.
  • Lowers operating temperatures by reducing friction.
  • Provides an improved seal around the ring zone area, improving combustion efficiency and reducing smoke opacity and blow-by.
  • Reduces fuel and/or electrical power consumption.
  • Improves filtration efficiency by reducing the generation of large wear particles.
  • Increases equipment availability and extends equipment life.

Product Application and Availability:

NNL 690 is intended for use in internal combustion engine crankcases at 3% of the oil volume, each time the oil is changed. It is also suitable for use in automatic transmissions at an application rate of 1%, in power shift transmissions at 3%, and in circulating systems at 3% or 5%, depending on the severity of service. NNL 690 is compatible with mineral based and synthetic oils based on polyalphaolefins and diesters. At recommended application rates, it will not affect engine oil viscosity ratings or typical engine seal materials.
NNL 690 is available in 1L bottles, 5L and 10L jugs, 20L pails and 205L drums.



Typical Properties
Property Method Result
Appearance   Clear, Light Amber
Liquid
Color ASTM D1500 1L 2.5
Viscosity
@40°C (104°F)
@100°C (212°F)
ASTM D445 69 cSt
9 cSt
Viscosity Index ASTM D2270 105
Density
@20°C (68°F)
ASTM D941 1.00 g/mL
Specific Gravity ASTM D941 1.00
Pour Point ASTM D97 -21°C (-6°F)
Flash Point ASTM D92 195°C (383°F)
Base Number ASTM D2896 13.3 mg KOH/g
Zinc and lead content   Nil
Colloidal Suspension (solid particles,PTFE, graphite,MoS2)   None
Test Data
Property Method Result
Copper Strip Corrosion (130oC x 2 hours) ASTM D130 1b
Rust Preventing
Characteristics
(100% NNL 690)
-Distilled water
-Synthetic sea water
ASTM D665 Pass
Pass
Elastomer
Compatibility
(3% in 10W-30 oil)
-Nitrile
-Neoprene
-Fluorocarbon
ASTM D4289
[modified]

Pass
Pass
Pass

Contact Gamma Wear
@150 lb. load
10W-30 oil
with NNL 690
  592 teeth
77 teeth

Viscosity:

A 5% application of NNL 690 in typical SAE 30 to SAE 50 weight oils results in little or no change in viscosity or viscosity index of the oil.

Pour Point:

NNL 690 is formulated to have a negligible effect on the pour point of typical engine oils.

Ash Content:

Power Up NNL 690 is blended with an acid scavenger to neutralize blow-by gases and acidic oil degradation products. The addition of 3% NNL 690 will increase the base number of engine oils by about 0.5 mg KOH/g.

Application:

NNL 690 is intended for use in engine crankcases at 3% of the oil volume, each time the oil is changed. It can also be used in automatic transmissions at an application rate of 1%, power shift transmissions at 3% and in circulating systems at 3% to 5%, depending upon operation conditions. NNL 690 is compatible with all mineral oils and polyalphaolefin and diester based synthetic oils. NNL 690 is not recommended for use with water based fluids, phosphate esters or polyglycol fluids. Power Up NNL 690 is a unique boundary lubricant which is specifically formulated to solve many of today's tribological problems in the boundary lubrication regime. NNL 690 works by forming a wear reducing, protective film which is capable of withstanding extreme pressures. NNL 690 provides critical engine parts, such as the ring zone, cam lobes and turbocharger, with boundary lubrication protection far exceeding that of conventional oils. NNL 690 is a carefully balanced, complete additive package which contains anti-wear and extreme pressure additives, detergent/dispersants, viscosity index improvers, corrosion inhibitors and acid neutralizers.

Boundary lubrication protection:

In independent Contact Gamma wear tests, NNL 690 significantly reduced the amount of wear generated when an engine oil alone was used. The results are provided graphically in Figure 1 below. Calculated estimates based on wear reduction (up to 86.9%) suggest that the use of NNL 690 can extend equipment life over 7 times by reducing wear up to 86.9%.

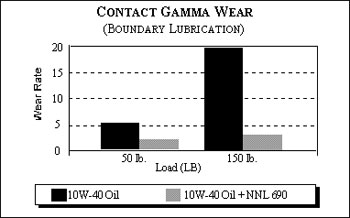

Fig. 1 - Contact Gamma Wear Test Results

Diesel Engine Field Test

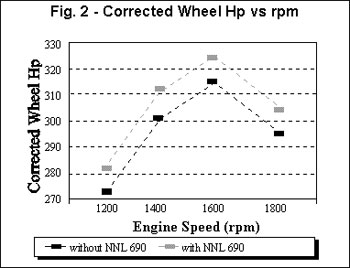

A series of dynamometer and ultrasonic noise tests were carried out by an independent consultant to determine the effect of Power Up NNL 690 on a diesel highway tractor engine. The application of 3% NNL 690 increased the horsepower and torque, while reducing fuel consumption, ultrasonic wear noise and emissions. Some of the computer controlled and corrected dynamometer results are given in Figures 2 and 3.
